Since the introduction of new 0,5% sulfur fuels, shipowners have encountered several challenges related with the fuel-pumps onboard. Questionable quality and inadequate lubricity of the various bunkers, have led to unforeseen failures and in many cases complete unit replacements.

This uncharted situation and the repeated incidents have forced operators to consider even pumps’ replacement and upgrade with IMO AB and ALLWEILER pumps.

Members of CIRCOR Group, ALLWEILER GmbH and IMO AB, two of the most reputable and well established Pump manufacturers, have been vastly chosen for their superior quality and well proven reliability to assist shipowners tackle these challenges.

With installations on more than 1000 vessels in the Greek Shipping industry and with over 100 years of experience, ALLWEILER and IMO can provide Owners with a wide range of pumps, covering all needs onboard the ships.

Going further, and recognizing the urgency in case of a defect, we have created an adequate stock of the most common pump types (ACE 032, ACE 038) available for immediate dispatch, at our warehouse in Piraeus.

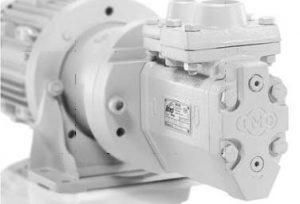

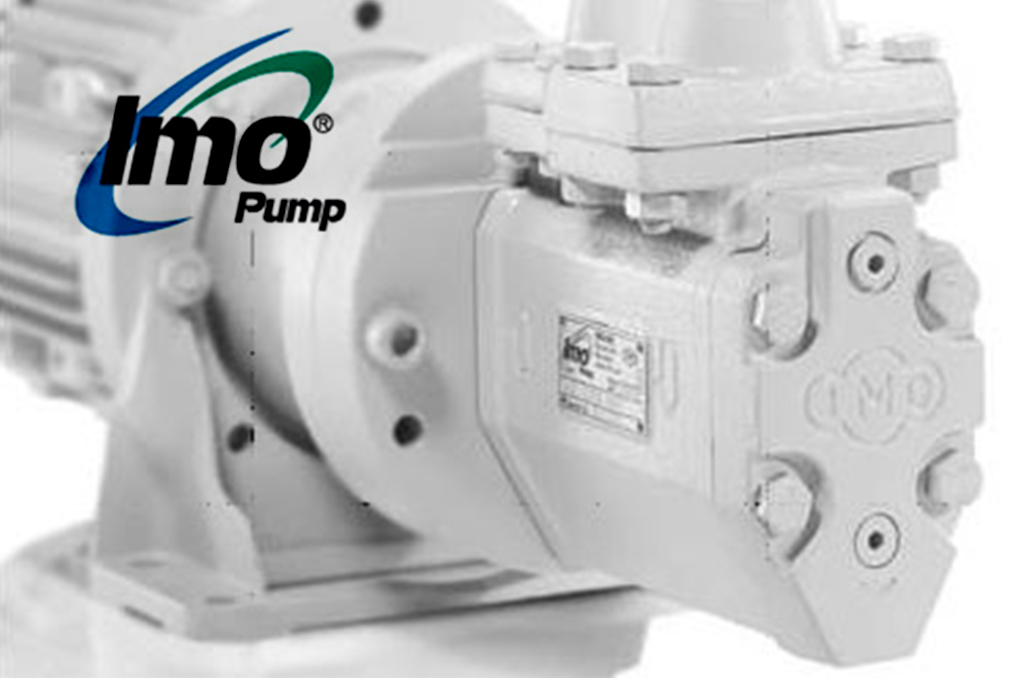

• IMO pump series

Designed for the demanding marine environment and having more than one million pumps delivered worldwide, IMO ΑΒ is an established and trusted maker in the marine industry.

Viscosity range 1.4 – 5000 cst
IMO pumps meet the requirements for low viscosity (down to 1.4 cSt @ 40 0C for DMX) according to ISO 8217:2017 and max. sulfur content of 0.1% as stated in Marpol 73/78 and 2005/33/EC while maintaining the same high reliability.

Low Power Consumption
Small peripheral diameters of the rotors and low fluid axial velocities reduce fluid shearing within the pump, resulting in a reduction of horsepower consumption.

Benefits of simplicity
IMO pumps are simple to understand and with only three moving parts, there is little that can go wrong.

Designed for efficiency
IMO Pumps are designed using internal bearings which are also hydraulically balanced so that there are no loaded bearings, neither axial nor radial. These design features mean less maintenance for re-greasing, less downtime and longer life.

Leak-free
OptiLine (Magnetic Coupling) version, eliminates leakages by incorporating a complete enclosure where there is no shaft extension into open air and thus, no need for a conventional seal. Power transmission is achieved through the magnetic coupling.

Quiet operation
Smooth and continuous output flow that greatly reduces pressure pulsations. As a result, there is lower air borne, fluid borne and structure borne noise for a wide viscosity range.

• ALLWEILER ALLFUEL® series

ALLFUEL® 3-Screw pump series with a delivery pressure up to 40 bars, is widely used for Fuel and Lubricating Oil Feed and Circulating pumps. They are capable of handling fuels with viscosities as low as 1,0 cst and having Sulfur content of 0,1% by mass.

Specifically designed for marine use, the ALLFUEL® series demonstrates the following key characteristics.

1. Compact Design: Less installation space is required, due to smaller overall dimension.
2. 100% Secure Change-Over: Modern valve casing, equipped with one ball valve and three clear valve positions, for secure switching to the standby pump. The non-return valve permits maintenance and dismounting of one pump without disturbing the operation of the other.
3. Fast exchange of Filter: Vertical installation of the filter allows an installation without oil drain. No risk of Dry-running after filter change. Due to the “inside-out“ perfusion the dirt particles stay in the filter.
4. Secure pump Operation: Nearly pulsation free and low noise operation.
5. Smooth pump starting: The optional heating for filters and mechanical seals guarantees a smooth pump starting with low ambient temperatures.
6. Ideal starting: A vent screw offers an ideal venting of the mechanical sealing room.
7. Additional O-Ring: For prevention of backflow of fluids with low viscosity (MGO).
8. External ball bearing: Wear protected and sealed.
9. Mechanical Seal: Wear-resistant SiC/SiC.
